Daikin 23.5kW Inverter, Reverse Cycle R410A Ducted, 3 Phase FDYQN250LB-LY

FDYQN250LB-LY

A Daikin Ducted System provides superior and discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home. Engineered to deliver a compact and efficient design, the new Inverter series is ideal for installation into the tight roof space of any modern home.

  • Australian Made – Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.
  • All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
  • Improved Energy Efficiency is achieved through the use of a DC fan motor, cross-path heat exchanger and increased  outdoor coil passes.
  • 15 different fan speed settings to suit your ductwork configuration.
  • Inverter Technology – An inverter system works like the accelerator of a car, gently increasing or decreasing power. They reach the desired temperature quicker and steadily maintain it without fluctuations.
  • 140 and 160 Class is now housed in a compact indoor casing for easier installation.
  • Night Quiet Mode reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
  • Backlit Display, Home Leave Function, Temperature Limit, Weekly Schedule Timer, Quick Cool/Heat Mode, Off Timer Feature.

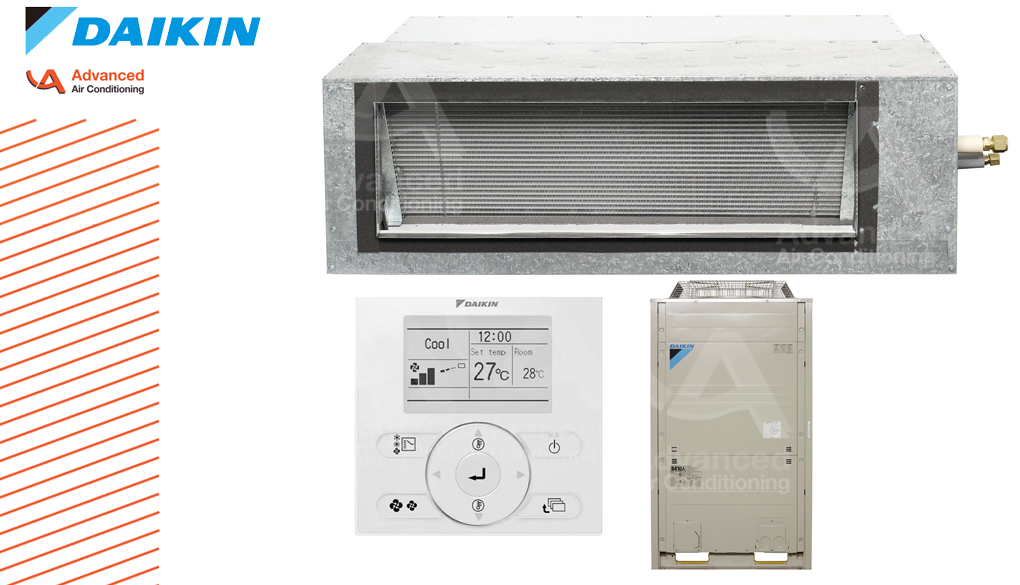

INDOOR UNIT FDYQN250LBV1
OUTDOOR UNIT RZQ250LY1
Rated Capacity Cool (kW) 23.5
Heat (kW) 26.8
Capacity Range Cool (kW) 15.0-23.5
Heat (kW) 16.8-26.8
Power Input (Rated) Cool (kW) 7.85
Heat (kW) 8.47
E.E.R/C.O.P Cool/Heat 2.99/3.16
Air Flow Rated (Nominal/Max) l/s 1400/1600
Indoor Sound Level (H) @ 1.5m dBA (C/H) 49.5/49.5
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 500x1430x970
Outdoor (mm) 1680x930x765
Weight Indoor (kg) 92
Outdoor (kg) 193
Power Supply V/Hz 3 Phase, 415V, 50Hz
Compressor Type   Hermetically sealed scroll type
Refrigerant Type   R410
Pipe Sizes Liquid (mm) 9.5 (Brazed)
  Gas (mm) 22.2 (Brazed)
  Drain (mm) BSP 3/4 inch Internal Thread
Supply Air Opening mm (HxW, Flange) 376×938
Return Air Opening Oval (mm) 350×1118 (Flange)
Outdoor Operating Range Cool (CDB) -5 to 43
  Heat (CWB) -20 to 16
EPA Sound Power Level dBA 79
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 57/58
  • Daikin Zone Controller
    Zone Control is available on all ducted systems and allows you to group specified rooms within a particular “zone”. Zoning can help maximise energy efficiency and comfort by specifically targeting heating and cooling. For example, you may want to assign bedrooms to Zone One and the living areas to Zone Two etc., to thus enable these specific areas to be cooled or heated individually when needed. When a zone is selected, cooling and heating will not be distributed to rooms outside the zone.
    The position of the discharge grilles featured in a ducted system can also be tailored to suit the shape of each room within a zone, for optimum air circulation. For Zone Control functionality your Daikin heat pump must be fitted with a Daikin Zone Controller and associated zone control dampers. The Zone Control is featured on the Zone Controller.
  • Daikin Airbase Mobile Control
    Daikin Airbase Daikin Airbase puts your system’s frequently used functions at your fingertips with an easy to use app. In conjunction with Daikin’s BRP15B61 wireless LAN adaptor, the Airbase app lets you use your smartphone or tablet to operate your air conditioning unit via your inhome Wi-Fi or remotely with an internet connection. The Daikin Airbase app is available to Android; iOS devices and is only compatible with SkyAir VRV indoor units.
  • MyAir Smart Air Conditioning
    MyAir is a premium home air conditioning management system with up to 10 zones and individual room air flow control and a touchscreen that can double as a tablet. MyAir comes with its own app tat turns most smartphones or tablets into wireless remote controls allowing you to control the system from the comfort of your coach, or while you are working up a sweat. The app works from anywhere your device has an internet connection, meaning you’ll be able to access it remotely using your MyAir app from anywhere in the world.
  • Installation
    With our manufacturer offering a 5 year warranty on this product, don’t risk making it void by having this unit installed incorrectly. We liaise with the manufacturer on your behalf, so you don’t have to stress about a faulty product.
    5 years is a lot of hot days in Brisbane, and a fair few cold ones as well. If you use us you will be rest assured that we will be around to fix your air-conditioning when you need it.
    By adding this to your cart, one of our experienced staff will call and arrange a quote on installation for you. Easy!


payment methods

$8,080.00

  • 5 year Manufacturer's Warranty
  • Only available from Daikin authorised dealers (that's us!)
  • Indoor Unit, Outdoor Unit and BRC1E63 Controller only
  • Retrofitting an old R22 ducted system
  • Contact us for Installation Prices
